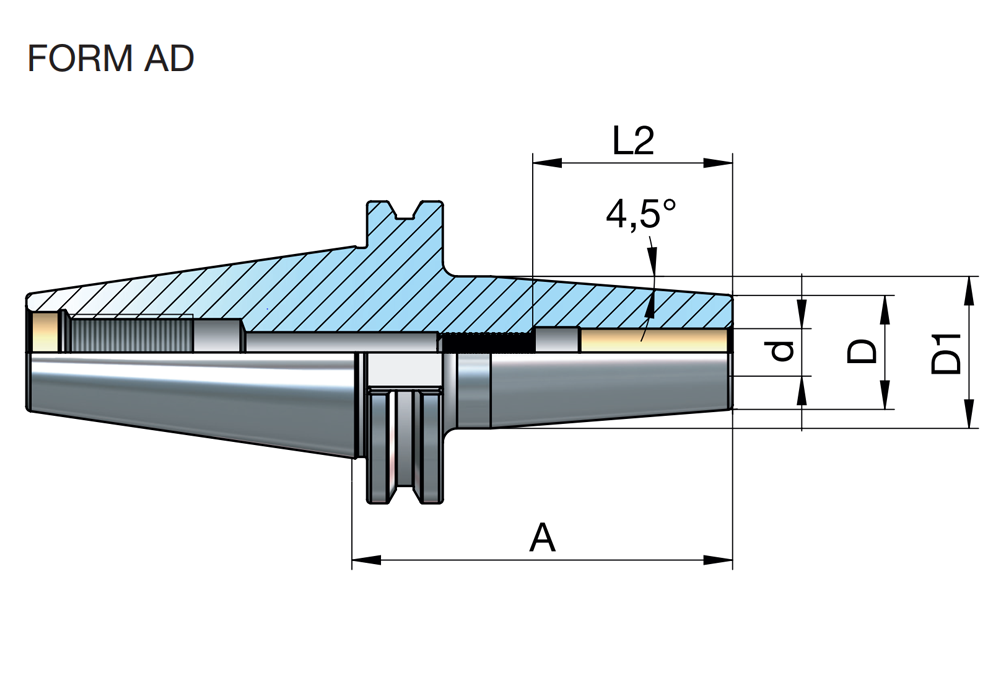

Shrink Chuck For Mounting Of Solid Carbide Cutters
| ORDER NO | Form | A | d | D | D1 | L2 | SK | Kg | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|
| 302.25.03.80 | AD | 80 | 3 | 10 | 16 | 14 | SK30 | 0.44 |    |
| 302.25.04.80 | AD | 80 | 4 | 12 | 20 | 17 | SK30 | 0.47 | |
| 302.25.05.80 | AD | 80 | 5 | 12 | 21,5 | 20 | SK30 | 0.47 | |
| 302.25.06.80 | AD | 80 | 6 | 21 | 27 | 36 | SK30 | 0.59 | |
| 302.25.08.80 | AD | 80 | 8 | 21 | 27 | 36 | SK30 | 0.58 | |
| 302.25.10.80 | AD | 80 | 10 | 24 | 32 | 42 | SK30 | 0.65 | |
| 302.25.12.80 | AD | 80 | 12 | 24 | 32 | 47 | SK30 | 0.63 | |
| 302.25.14.80 | AD | 80 | 14 | 27 | 34 | 47 | SK30 | 0.68 | |
| 302.25.16.80 | AD | 80 | 16 | 27 | 34 | 50 | SK30 | 0.66 | |
| 302.25.18.80 | AD | 80 | 18 | 33 | 42 | 50 | SK30 | 0.80 | |
| 302.25.20.80 | AD | 80 | 20 | 33 | 42 | 52 | SK30 | 0.76 | |
