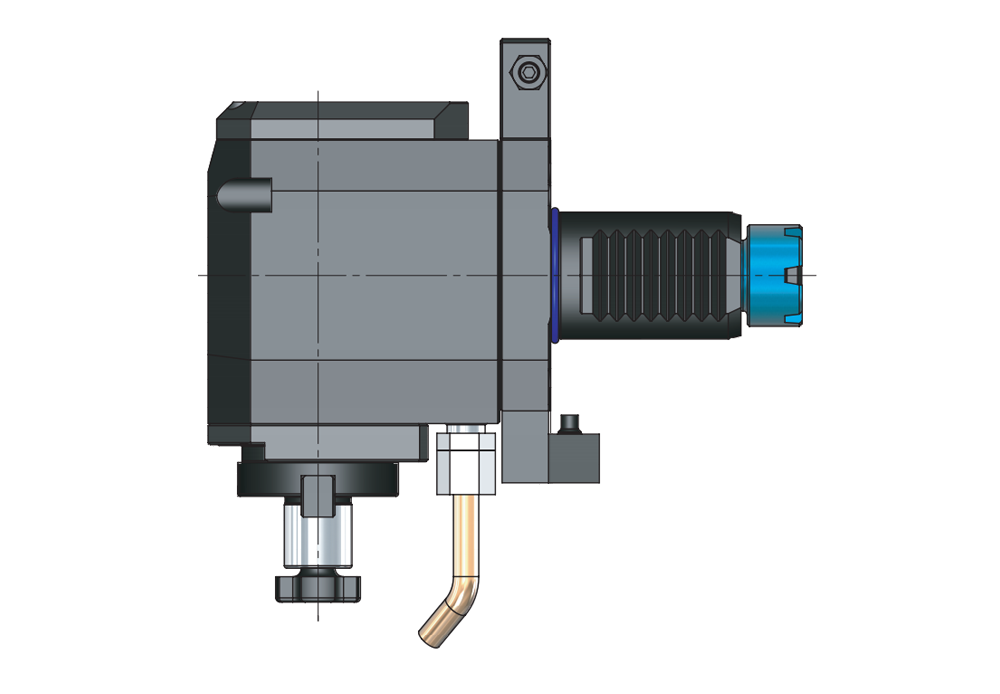

Radial Milling Head Chuck For Cutter Arbor DIN 6357 With Alignment Bar

ORDER NO	A	D	D1	D2	E	H	L	B	N.Max, (1/min)	T.max. (Nm)	A1
TORA40K16A065D42	65	42	40	16	38	65	68	76	6000	50	53
TORA40K16A065D48	65	48	40	16	38	65	68	76	6000	50	53
TORA40K16A065D50	65	50	40	16	38	65	68	76	6000	50	53
TORA40K16A065D56	65	56	40	16	38	65	68	76	6000	50	53
TORA40K16A065D63	65	63	40	16	38	65	68	76	6000	50	53
TORA40K16B065D42	65	42	40	16	38	65	68	76	6000	50	53
TORA40K16B065D48	65	48	40	16	38	65	68	76	6000	50	53
TORA40K16B065D50	65	50	40	16	38	65	68	76	6000	50	53
TORA40K16B065D56	65	56	40	16	38	65	68	76	6000	50	53
TORA40K16B065D63	65	63	40	16	38	65	68	76	6000	50	53
TORA40K22A065D42	65	42	40	22	38	65	68	76	6000	50	53
TORA40K22A065D48	65	48	40	22	38	65	68	76	6000	50	53
TORA40K22A065D50	65	50	40	22	38	65	68	76	6000	50	53
TORA40K22A065D56	65	56	40	22	38	65	68	76	6000	50	53
TORA40K22A065D63	65	63	40	22	38	65	68	76	6000	50	53
TORA40K22B065D42	65	42	40	22	38	65	68	76	6000	50	53
TORA40K22B065D48	65	48	40	22	38	65	68	76	6000	50	53
TORA40K22B065D50	65	50	40	22	38	65	68	76	6000	50	53
TORA40K22B065D56	65	56	40	22	38	65	68	76	6000	50	53
TORA40K22B065D63	65	63	40	22	38	65	68	76	6000	50	53
