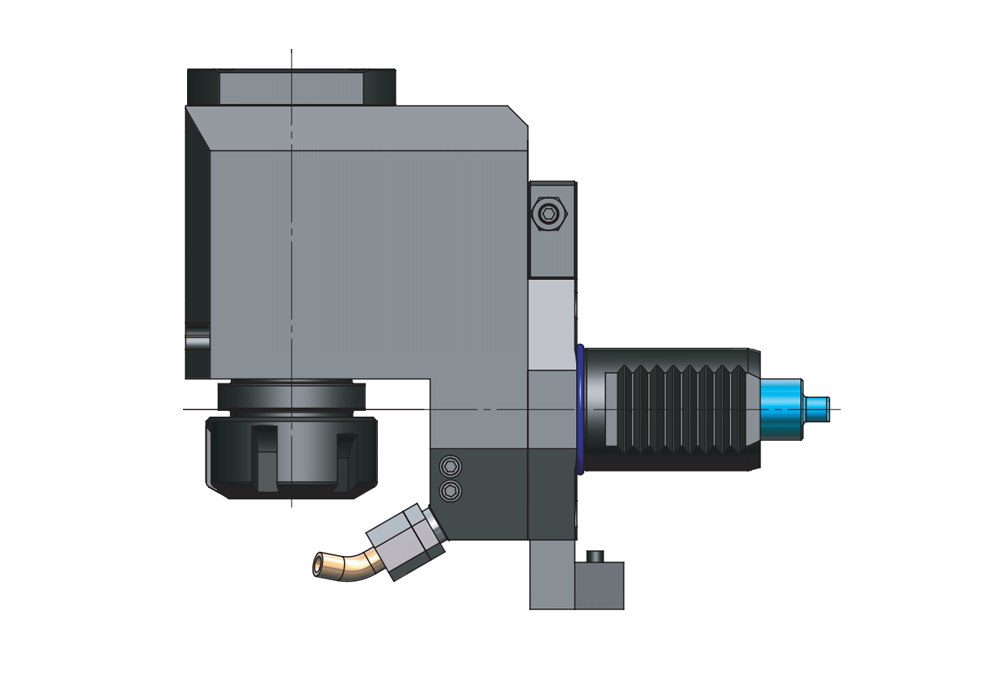

Radial Drilling-Milling Head Collet Chuck-Shifted DIN 6499 With Fixing Unit
| ORDER NO | TYPE | CAPACITY | A | D1 | E | H | L | C | B | S | N.Max, (1/min) | T.max. (Nm) | K | A1 | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 09RK40E32A090C63 | ER 32 | 470 E (2 - 20) | 35,5 | 40 | 38 | 90 | 72 | 63 | 76 | 8 | 6000 | 50 | 9 | 102 | |
| 09RK40E32B090C63 | ER 32 | 470 E (2 - 20) | 35,5 | 40 | 38 | 90 | 72 | 63 | 76 | 8 | 6000 | 50 | 9 | 102 |
