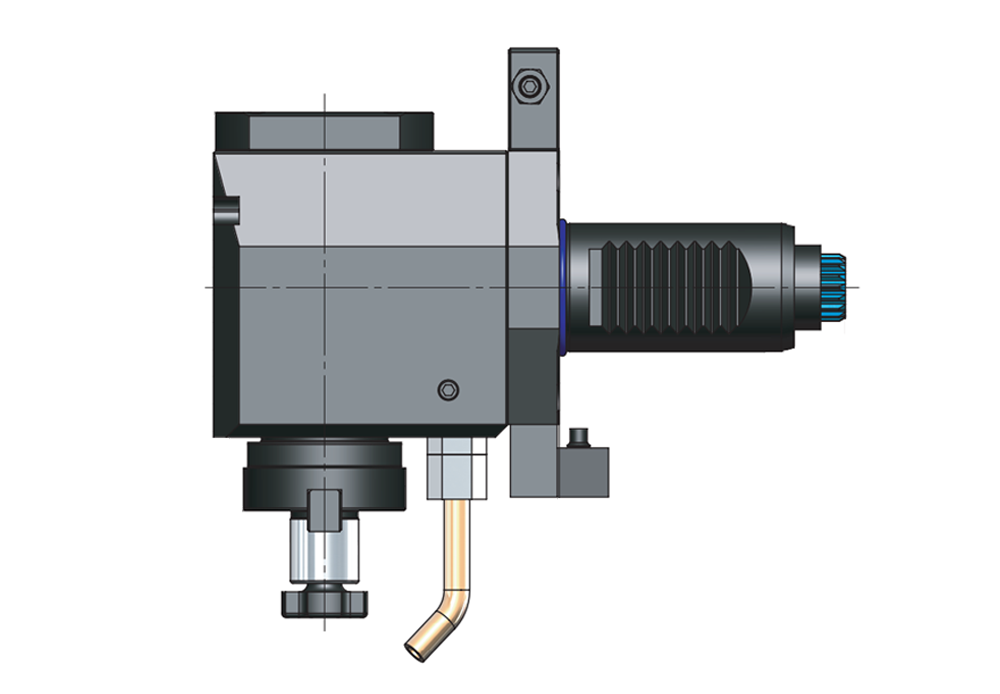

Radial Milling Head Chuck For Cutter Arbor DIN 6357 With Alignment Bar
| ORDER NO | A | D | D1 | D2 | E | H | L | B | N.Max, (1/min) | T.max. (Nm) | A1 | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80RA30K16A055D35 | 52 | 35 | 30 | 16 | 26 | 55 | 67 | 64 | 6000 | 25 | 41 | |
| 80RA30K16A055D55 | 52 | 55 | 30 | 16 | 26 | 55 | 67 | 64 | 6000 | 25 | 41 | |
| 80RA30K16B055D35 | 52 | 35 | 30 | 16 | 26 | 55 | 67 | 64 | 6000 | 25 | 41 | |
| 80RA30K16B055D55 | 52 | 55 | 30 | 16 | 26 | 55 | 67 | 64 | 6000 | 25 | 41 |
