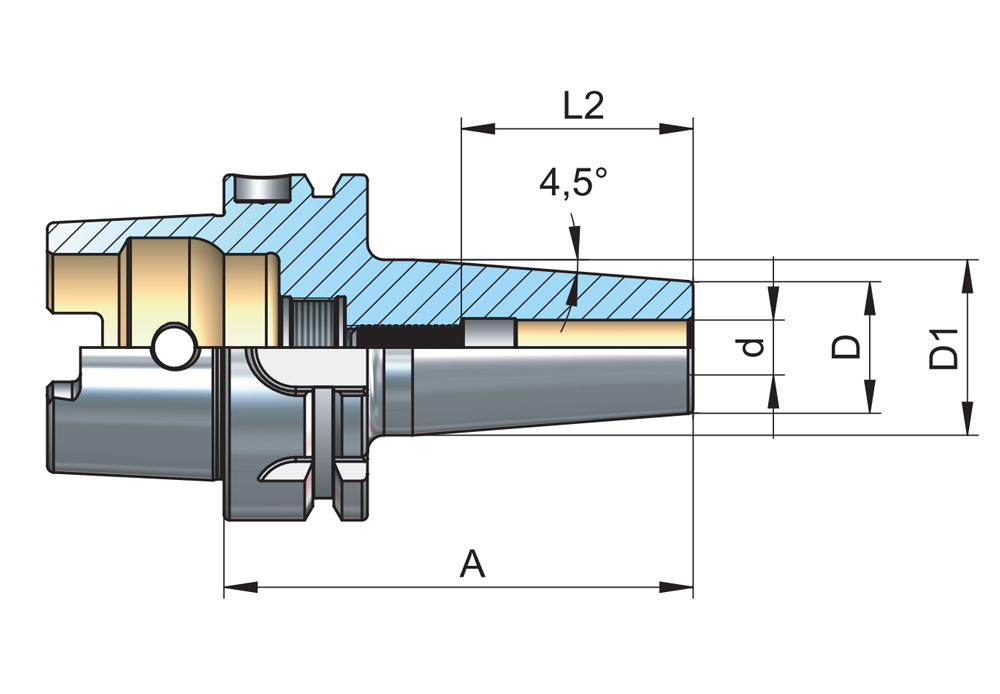

Shrink Chuck For Mounting Of Solid Carbide Cutters

* Does not include adjusting screw

ORDER NO	A	d	D	D1	L2	Kg	HSK
A50.25.03.80	80	3	10	16	14	0.44	HSK-A 50
*A50.25.03.120	120	3	10	16	14	0.50	HSK-A 50
*A50.25.03.160	160	3	10	16	14	0.56	HSK-A 50
A50.25.04.80	80	4	12	20	17	0.47	HSK-A 50
*A50.25.04.120	120	4	12	20	17	0.56	HSK-A 50
*A50.25.04.160	160	4	12	20	17	0.65	HSK-A 50
A50.25.05.80	80	5	12	20,5	20	0.46	HSK-A 50
*A50.25.05.120	120	5	12	22	20	0.57	HSK-A 50
*A50.25.05.160	160	5	12	22	20	0.68	HSK-A 50
A50.25.06.80	80	6	21	27	36	0.58	HSK-A 50
A50.25.06.120	120	6	21	27	36	0.75	HSK-A 50
A50.25.06.160	160	6	21	27	36	0.92	HSK-A 50
A50.25.08.80	80	8	21	27	36	0.58	HSK-A 50
A50.25.08.120	120	8	21	27	36	0.74	HSK-A 50
A50.25.08.160	160	8	21	27	36	0.91	HSK-A 50
A50.25.10.85	85	10	24	32	42	0.65	HSK-A 50
A50.25.10.120	120	10	24	32	42	0.86	HSK-A 50
A50.25.10.160	160	10	24	32	42	1.11	HSK-A 50
A50.25.12.90	90	12	24	32	47	0.67	HSK-A 50
A50.25.12.120	120	12	24	32	47	0.85	HSK-A 50
A50.25.12.160	160	12	24	32	47	1.09	HSK-A 50
A50.25.14.90	90	14	27	34	47	0.72	HSK-A 50
A50.25.14.120	120	14	27	34	47	0.92	HSK-A 50
A50.25.14.160	160	14	27	34	47	1.19	HSK-A 50
A50.25.16.95	95	16	27	34	50	0.73	HSK-A 50
A50.25.16.120	120	16	27	34	50	0.90	HSK-A 50
A50.25.16.160	160	16	27	34	50	1.17	HSK-A 50
A50.25.18.95	95	18	33	42	50	0.90	HSK-A 50
A50.25.18.120	120	18	33	42	50	1.16	HSK-A 50
A50.25.18.160	160	18	33	42	50	1.58	HSK-A 50
A50.25.20.100	100	20	33	42	52	0.94	HSK-A 50
A50.25.20.120	120	20	33	42	52	1.13	HSK-A 50
A50.25.20.160	160	20	33	42	52	1.55	HSK-A 50

HSK ISO 12164-1 (DIN 69893)
