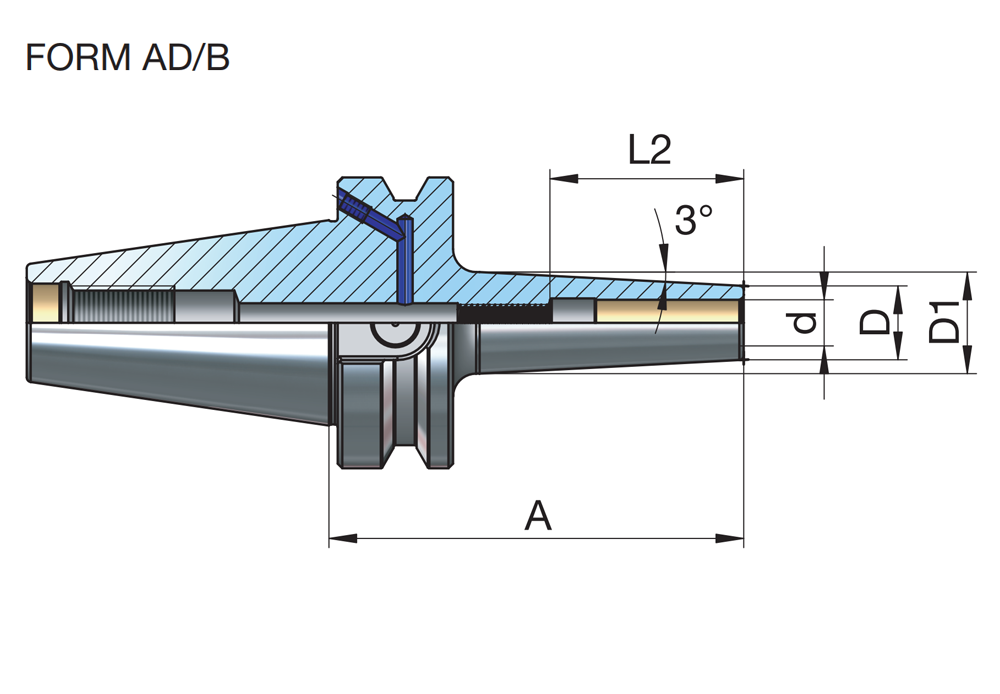

Shrink Chucks-Slimline Design For Solid Carbide Cutters

* Does not include adjusting screw

ORDER NO	BT	Form	A	d	D	D1	L2	Kg
406.25.08.90.S	BT 40	JF	90	8	14	20	36	1.06
406.25.10.120.S	BT 40	JF	120	10	16	25	42	1.17
406.25.10.160.S	BT 40	JF	160	10	16	29	42	1.34
406.25.10.90.S	BT 40	JF	90	10	16	22	42	1.08
406.25.12.120.S	BT 40	JF	120	12	18	27	47	1.17
406.25.12.160.S	BT 40	JF	160	12	18	31	47	1.36
406.25.12.90.S	BT 40	JF	90	12	18	24	47	1.08
*406.25.03.120.S	BT 40	JF	120	3	9	18	14	1.04
406.25.03.90.S	BT 40	JF	90	3	9	15	14	1.00
*406.25.04.120.S	BT 40	JF	120	4	10	19	17	1.06
406.25.04.90.S	BT 40	JF	90	4	10	16	17	1.00
*406.25.05.120.S	BT 40	JF	120	5	11	20	20	1.07
406.25.05.90.S	BT 40	JF	90	5	11	17	20	1.01
406.25.06.120.S	BT 40	JF	120	6	12	21	36	1.10
406.25.06.160.S	BT 40	JF	160	6	12	25	36	1.22
406.25.06.90.S	BT 40	JF	90	6	12	18	36	1.04
406.25.08.120.S	BT 40	JF	120	8	14	23	36	1.14
406.25.08.160.S	BT 40	JF	160	8	14	27	36	1.28

JIS B 6339 (MAS 403 BT)
