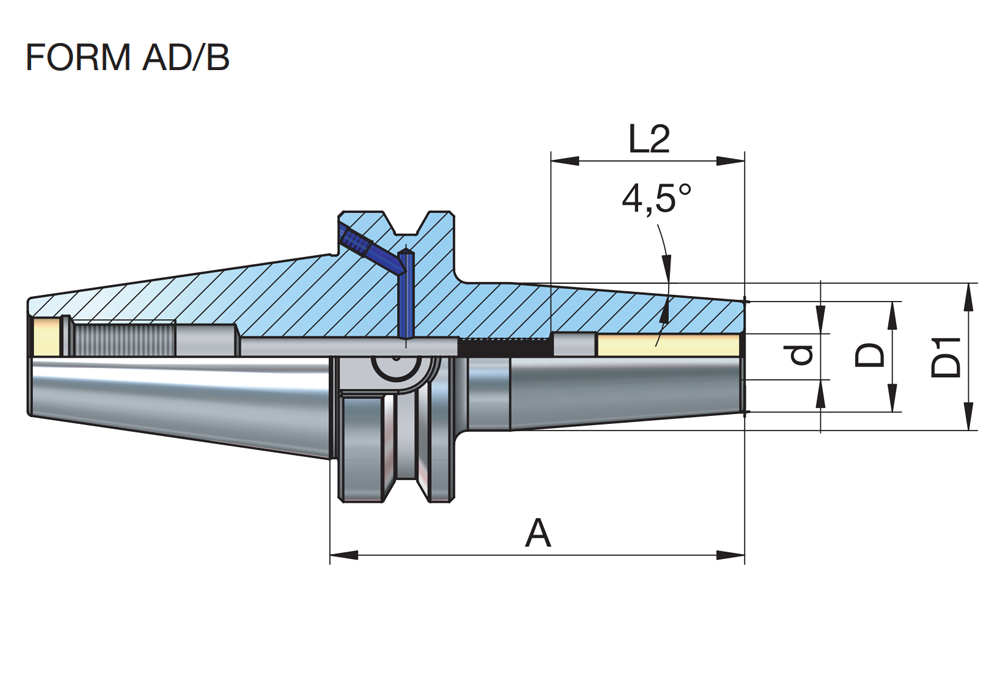

Shrink Chuck For Mounting Of Solid Carbide Cutters

* Does not include adjusting screw

ORDER NO	BT	Form	A	d	D	D1	L2	Kg
506.25.03.100	BT 50	JF	100	3	10	16	14	3.64
*506.25.03.120	BT 50	JF	120	3	10	16	14	3.68
*506.25.03.160	BT 50	JF	160	3	10	16	14	3.73
506.25.04.100	BT 50	JF	100	4	12	20	17	3.68
*506.25.04.120	BT 50	JF	120	4	12	20	17	3.73
*506.25.04.160	BT 50	JF	160	4	12	20	17	3.82
506.25.05.100	BT 50	JF	100	5	12	21,5	20	3.68
*506.25.05.120	BT 50	JF	120	5	12	22	20	3.73
*506.25.05.160	BT 50	JF	160	5	12	22	20	3.84
506.25.06.100	BT 50	JF	100	6	21	27	36	3.84
506.25.06.120	BT 50	JF	120	6	21	27	36	3.92
506.25.06.160	BT 50	JF	160	6	21	27	36	4.08
506.25.08.100	BT 50	JF	100	8	21	27	36	3.83
506.25.08.120	BT 50	JF	120	8	21	27	36	3.91
506.25.08.160	BT 50	JF	160	8	21	27	36	4.07
506.25.10.100	BT 50	JF	100	10	24	32	42	3.86
506.25.10.120	BT 50	JF	120	10	24	32	42	4.01
506.25.10.160	BT 50	JF	160	10	24	32	42	4.25
506.25.12.100	BT 50	JF	100	12	24	32	47	3.85
506.25.12.120	BT 50	JF	120	12	24	32	47	3.96
506.25.12.160	BT 50	JF	160	12	24	32	47	4.18
506.25.14.100	BT 50	JF	100	14	27	34	47	3.90
506.25.14.120	BT 50	JF	120	14	27	34	47	4.02
506.25.14.160	BT 50	JF	160	14	27	34	47	4.27
506.25.16.100	BT 50	JF	100	16	27	34	50	3.88
506.25.16.120	BT 50	JF	120	16	27	34	50	4.00
506.25.16.160	BT 50	JF	160	16	27	34	50	4.25
506.25.18.100	BT 50	JF	100	18	33	42	50	4.03
506.25.18.120	BT 50	JF	120	18	33	42	50	4.22
506.25.18.160	BT 50	JF	160	18	33	42	50	4.63
506.25.20.100	BT 50	JF	100	20	33	42	52	4.00
506.25.20.120	BT 50	JF	120	20	33	42	52	4.20
506.25.20.160	BT 50	JF	160	20	33	42	52	4.60
506.25.25.110	BT 50	JF	110	25	44	53	58	4.44
506.25.25.120	BT 50	JF	120	25	44	53	58	4.60
506.25.25.160	BT 50	JF	160	25	44	53	58	5.25
506.25.32.110	BT 50	JF	110	32	44	53	62	4.27
506.25.32.120	BT 50	JF	120	32	44	53	62	4.43
506.25.32.160	BT 50	JF	160	32	44	53	62	5.09
506.25.10.200	BT 50	JF	200	10	24	32	42	4.50
506.25.16.200	BT 50	JF	200	16	27	34	50	4.50
506.25.18.200	BT 50	JF	200	18	33	42	50	5.04
*506.25.03.200	BT 50	JF	200	3	10	16	14	3.79
*506.25.04.200	BT 50	JF	200	4	12	20	17	3.91
*506.25.05.200	BT 50	JF	200	5	12	22	20	3.95
506.25.06.200	BT 50	JF	200	6	21	27	36	4.24
506.25.08.200	BT 50	JF	200	8	21	27	36	4.23
506.25.12.200	BT 50	JF	200	12	24	32	47	4.39
506.25.14.200	BT 50	JF	200	14	27	34	47	4.52
506.25.20.200	BT 50	JF	200	20	33	42	52	5.03
506.25.25.200	BT 50	JF	200	25	44	53	58	5.91
506.25.32.200	BT 50	JF	200	32	44	53	62	5.75

JIS B 6339 (MAS 403 BT)

Accessories

Adjusting Screw DIN 916
