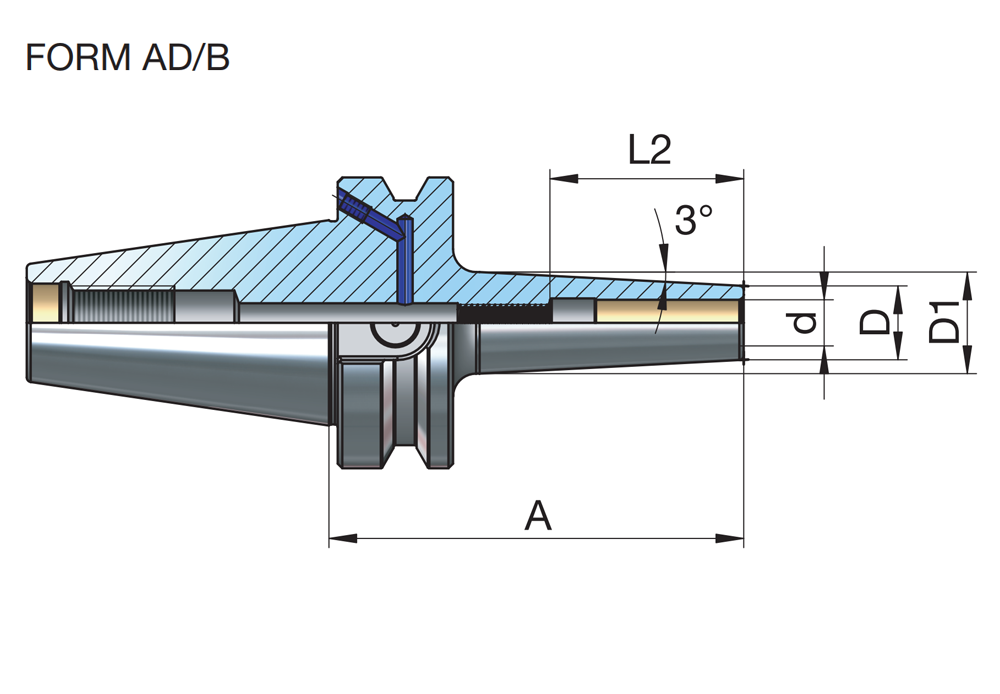

Shrink Chucks-Slimline Design For Solid Carbide Cutters
| ORDER NO | BT | Form | A | d | D | D1 | L2 | Kg | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|
| 506.25.08.160.S | BT 50 | JF | 160 | 8 | 14 | 26,5 | 36 | 3.88 |    |
| 506.25.08.120.S | BT 50 | JF | 120 | 8 | 14 | 22,5 | 36 | 3.75 | |
| 506.25.10.120.S | BT 50 | JF | 120 | 10 | 16 | 24,5 | 42 | 3.78 | |
| 506.25.06.120.S | BT 50 | JF | 120 | 6 | 12 | 20,5 | 36 | 3.72 | |
| *506.25.03.120.S | BT 50 | JF | 120 | 3 | 9 | 17,5 | 14 | 3.66 | |
| 506.25.03.100.S | BT 50 | JF | 100 | 3 | 9 | 15 | 14 | 3.63 | |
| *506.25.04.120.S | BT 50 | JF | 120 | 4 | 10 | 18,5 | 17 | 3.67 | |
| 506.25.04.100.S | BT 50 | JF | 100 | 4 | 10 | 16 | 17 | 3.64 | |
| 506.25.05.100.S | BT 50 | JF | 100 | 5 | 11 | 17 | 20 | 3.65 | |
| *506.25.05.120.S | BT 50 | JF | 120 | 5 | 11 | 19,5 | 20 | 3.68 | |
| 506.25.06.160.S | BT 50 | JF | 160 | 6 | 12 | 24,5 | 36 | 3.83 | |
| 506.25.06.100.S | BT 50 | JF | 100 | 6 | 12 | 18 | 36 | 3.69 | |
| 506.25.08.100.S | BT 50 | JF | 100 | 8 | 14 | 20 | 36 | 3.70 | |
| 506.25.10.160.S | BT 50 | JF | 160 | 10 | 16 | 28,5 | 42 | 3.94 | |
| 506.25.10.100.S | BT 50 | JF | 100 | 10 | 16 | 22 | 42 | 3.72 | |
| 506.25.12.120.S | BT 50 | JF | 120 | 12 | 18 | 26,5 | 47 | 3.77 | |
| 506.25.12.100.S | BT 50 | JF | 100 | 12 | 18 | 24 | 47 | 3.71 | |
| 506.25.12.160.S | BT 50 | JF | 160 | 12 | 18 | 30,5 | 47 | 3.94 | |
