Spann-ER

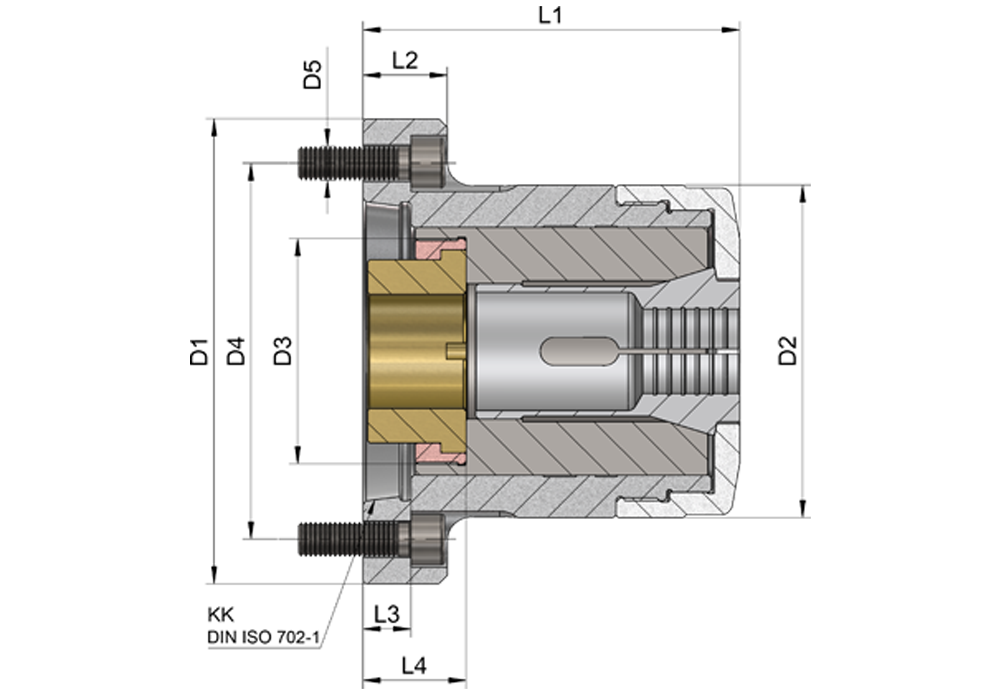

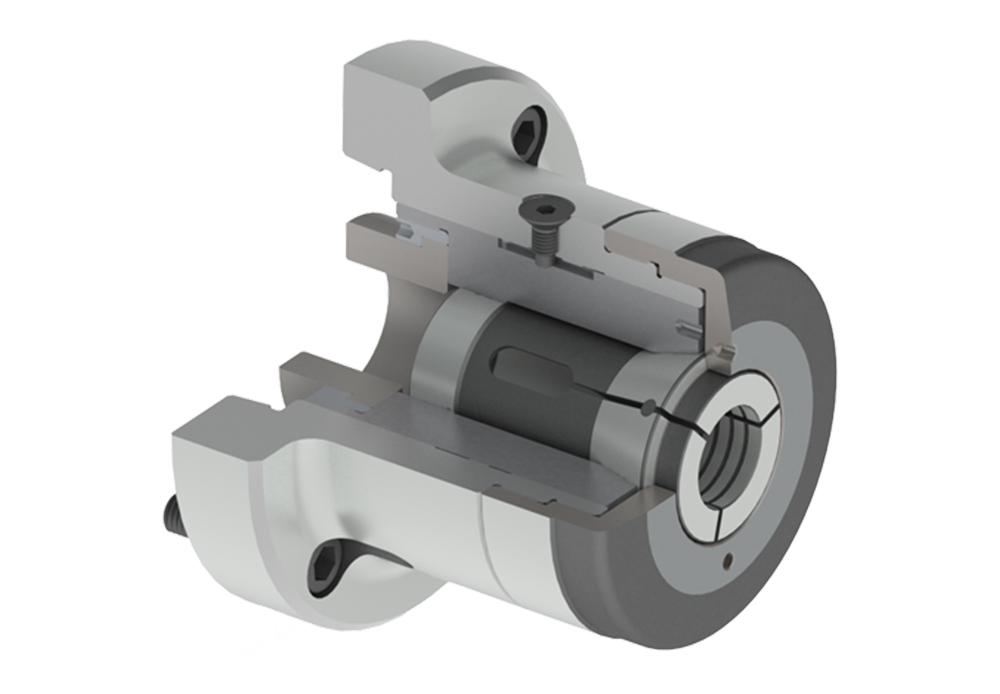

Power Chuck DIN 55021/22/27/28

ORDER NO	D1	L1	L2	L3	L4	D2	D3	D4	D5	Pens Nr.	KK	inch	DOWNLOAD
HPA-40/5	135	132	28	15	36	100	M66x1.5	104,8	M10(4x90°)	173 E	5	6'
HPA-40/6	165	134	30	17	36	118	M80x1.5	133,4	M12(4x90°)	173 E	6	8'
HPA-60/6	165	151	32	17	38	122	M86x1.5	133,4	M12(4x90°)	185 E	6	8'
HPA-60/8	208	154	40	20	41	138	M98x1.5	171,4	M16(4x90°)	185 E	8	10'

Accessories

Collets DIN 6343

HPA Assembling Wrench

HPA Bolt

HPA Bushes Body

HPA Bushes Nut

HPA Clamping Nuts

HPA Inner Bush

Wrench Of HPA Clamping Nut
