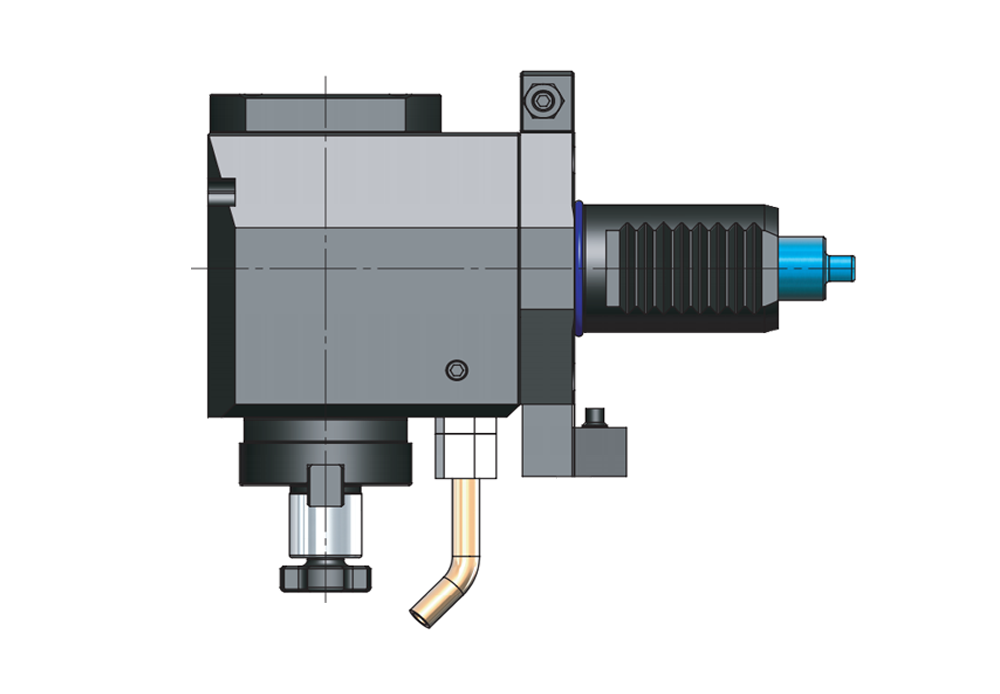

Tetê De Fraisage Radiale Porte-Fraise DIN 6357 Et Bloc De Fixer
| COMMANDE NO | A | D1 | D2 | E | H | L | C | B | S | N.Max, (1/min) | T.max. (Nm) | K | A1 | TELECHARGEMENT DU VISUEL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 09RA30K16A055C40 | 52 | 30 | 16 | 26 | 55 | 62 | 40 | 64 | 6 | 6000 | 25 | 7 | 41 | |
| 09RA30K16B055C40 | 52 | 30 | 16 | 26 | 55 | 62 | 40 | 64 | 6 | 6000 | 25 | 7 | 41 | |
| 09RA30K16A055C47 | 52 | 30 | 16 | 26 | 55 | 62 | 47 | 64 | 6 | 6000 | 25 | 7 | 41 | |
| 09RA30K16B055C47 | 52 | 30 | 16 | 26 | 55 | 62 | 47 | 64 | 6 | 6000 | 25 | 7 | 41 | |
| 09RA30K16A055C48 | 52 | 30 | 16 | 26 | 55 | 62 | 48 | 64 | 6 | 6000 | 25 | 7 | 41 | |
| 09RA30K16B055C48 | 52 | 30 | 16 | 26 | 55 | 62 | 48 | 64 | 6 | 6000 | 25 | 7 | 41 | |
| 09RA30K16A055C63 | 52 | 30 | 16 | 26 | 55 | 62 | 63 | 64 | 6 | 6000 | 25 | 7 | 41 | |
| 09RA30K16B055C56 | 52 | 30 | 16 | 26 | 55 | 62 | 56 | 64 | 6 | 6000 | 25 | 7 | 41 | |
| 09RA30K16B055C63 | 52 | 30 | 16 | 26 | 55 | 62 | 63 | 64 | 6 | 6000 | 25 | 7 | 41 | |
| 09RA30K16A055C56 | 52 | 30 | 16 | 26 | 55 | 62 | 56 | 64 | 6 | 6000 | 25 | 7 | 41 |
