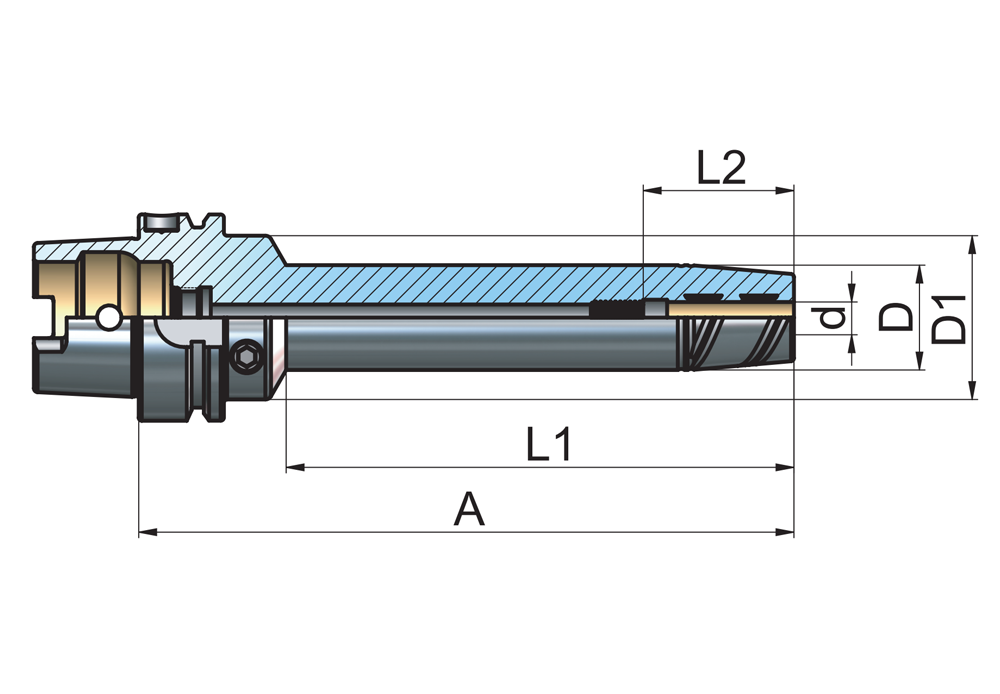

HSK ISO 12164-1 (DIN 69893)

Hydro-Dehnspannfutter, Lange Ausführung

BESTELLUNG NR.	A	d	D	D1	L1	L2	Kg	HSK
A100.65.20.200	200	20	42	50	150	51	3.62	HSK-A 100
A100.65.12.200	200	12	32	50	150	46	3.25	HSK-A 100
A100.65.06.150	150	6	26	50	100	37	2.62	HSK-A 100
A100.65.08.150	150	8	28	50	100	37	2.71	HSK-A 100
A100.65.10.150	150	10	30	50	100	41	2.73	HSK-A 100
A100.65.12.150	150	12	32	50	100	46	2.85	HSK-A 100
A100.65.16.150	150	16	38	50	100	49	3.08	HSK-A 100
A100.65.06.200	200	6	26	50	150	37	2.97	HSK-A 100
A100.65.08.200	200	8	28	50	150	37	3.07	HSK-A 100
A100.65.10.200	200	10	30	50	150	41	3.13	HSK-A 100
A100.65.14.150	150	14	34	50	100	46	3.34	HSK-A 100
A100.65.14.200	200	14	34	50	150	46	3.01	HSK-A 100
A100.65.16.200	200	16	38	50	150	49	3.54	HSK-A 100
A100.65.18.150	150	18	40	50	100	49	3.15	HSK-A 100
A100.65.18.200	200	18	40	50	150	49	3.62	HSK-A 100
A100.65.20.150	150	20	42	50	100	51	3.16	HSK-A 100
