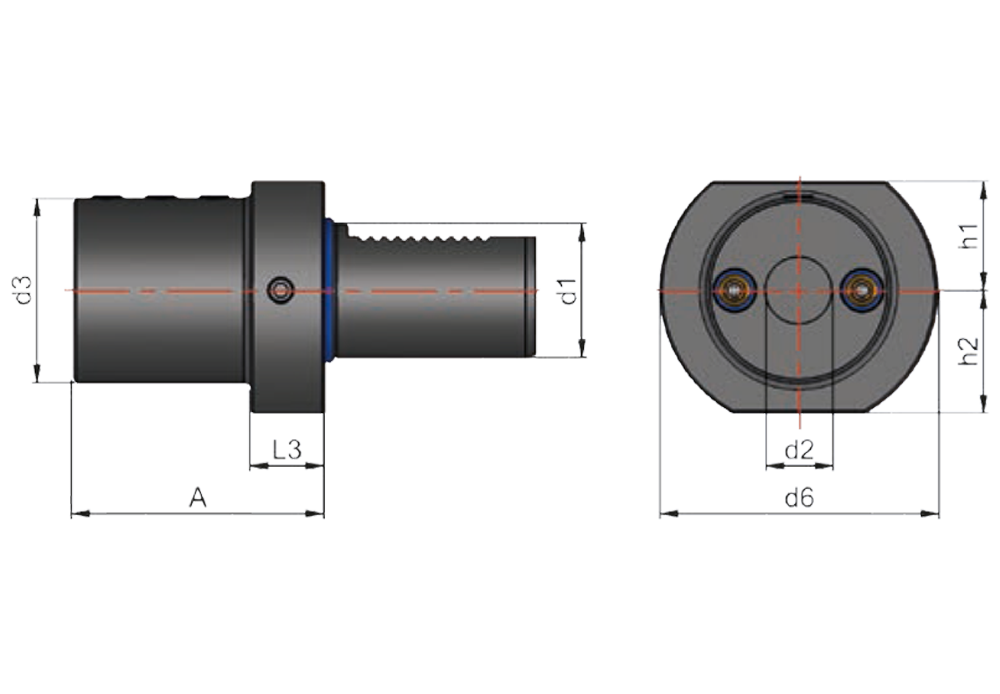

Bohrerhalter Form E2
| BESTELLUNG NR. | A | L3 | h1 | h2 | d3 | d6 | d1xd2 / Form E2 | Kg | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|
| 409.52.08.75 | 75 | 22 | 32,5 | - | 55 | 83 | 40 x 08 | 2.28 | |
| 409.52.10.75 | 75 | 22 | 32,5 | - | 55 | 83 | 40 x 10 | 2.26 | |
| 409.52.12.75 | 75 | 22 | 32,5 | - | 55 | 83 | 40 x 12 | 2.23 | |
| 409.52.16.75 | 75 | 22 | 32,5 | - | 55 | 83 | 40 x 16 | 2.22 | |
| 409.52.20.75 | 75 | 22 | 32,5 | - | 55 | 83 | 40 x 20 | 2.16 | |
| 409.52.25.75 | 75 | 22 | 32,5 | - | 55 | 83 | 40 x 25 | 2.07 | |
| 409.52.32.75 | 75 | - | 32,5 | - | 83 | 83 | 40 x 32 | 3.01 | |
| 409.52.40.90 | 90 | - | 32,5 | - | 83 | 83 | 40 x 40 | 3.24 |
