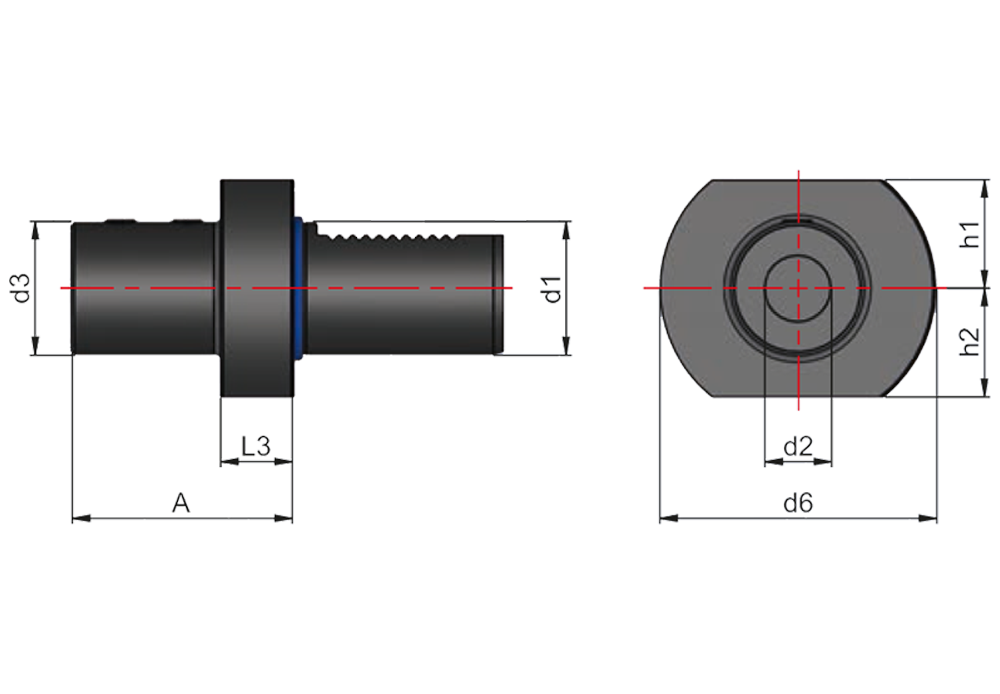

Bohrerhalter Für Wendeplattenbohrer E1
| BESTELLUNG NR. | A | L3 | h1 | h2 | d3 | d6 | d1xd2 / Form E2 | Kg | DOWNLOAD |
|---|---|---|---|---|---|---|---|---|---|
| 509.51.16.66 | 66 | 30 | 35 | - | 36 | 98 | 50 x 16 | 2.94 |    |
| 509.51.20.67 | 67 | 30 | 35 | - | 40 | 98 | 50 x 20 | 3.03 | |
| 509.51.25.80 | 80 | 30 | 35 | - | 45 | 98 | 50 x 25 | 2.94 | |
| 509.51.32.80 | 80 | 30 | 35 | - | 52 | 98 | 50 x 32 | 3.02 | |
| 509.51.40.90 | 90 | 30 | 35 | - | 63 | 98 | 50 x 40 | 3.38 | |
| 509.51.50.100 | 100 | 30 | 35 | - | 75 | 98 | 50 x 50 | 3.60 | |
